Speaker type: 2-way
bi-amp powered studio monitor
-
Frequency response (-10dB): 54Hz – 30 Hz
-
Frequency response (-3dB): 74Hz- 24kHz
-
Components:
LF 5” cone / HF 1” dome
-
Crossover:
2kHz
-
Output power:
70W (LF: 45W, HF: 25W)
-
Input sensitivity: -10 dBu/10k ohms
-

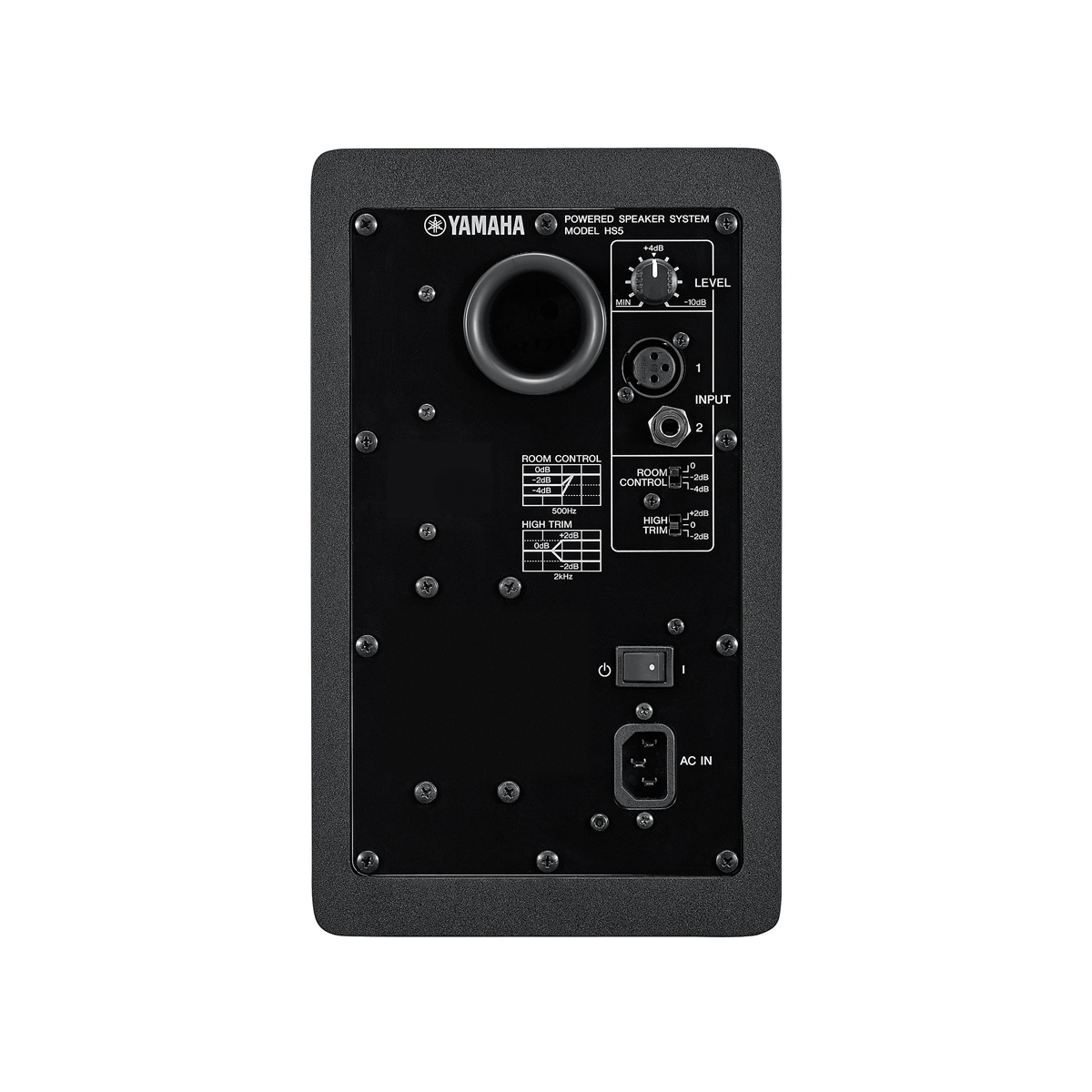

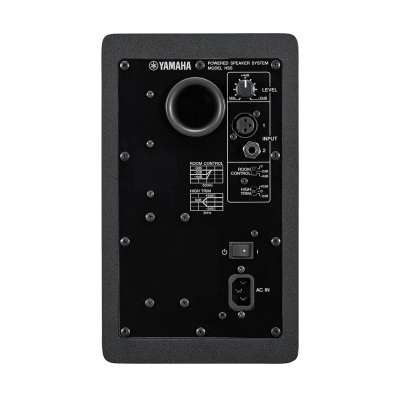

I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
-
Indicators:
Power ON (White LED)
-
Power consumption: 45W
-
Shape:
Bass-reflex type
-
Cabinet material: MDF
-
Dimensions
(WxHxD): 170mm x 285mm x
222mm
-
Net
weight : 5,3kg
-
Accessories : Owner’s Manual, Power cord
-
Packaging : Single
-
Others :
LEVEL control (+4dB/center cllick), EG : HIGH TRIM switch (+/- 2dB at HF)
/ ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
-
Flying and mounting hardware: -
-
Options: -
